| Categories | Power Connectors |
|---|---|
| Brand Name: | Jbocnt |
| Model Number: | MT60 |
| Certification: | CE、TUV、UL、RoHS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 500 sets |
| Price: | Negotiable |
| Payment Terms: | ,T/T,Western Union,D/P,D/A,L/C,MoneyGram |
| Supply Ability: | 10000/day |
| Delivery Time: | Sample: 1-3 days; Small order: 3-10 days; Bulk order: 10-18 days |
| Packaging Details: | High quality export packaging |
| Name: | MT60 Connector |
| Hardware materials: | Brass/Gold Plated |
| Housing Material: | PA66 |
| Mechanical life: | 1000 times |
| Product weight: | 8.70g |
| Rated current/ instantaneous current: | 30A/60A |
| Operating temperature: | -20°C to 120 °C |
| Wiring range: | 12AWG |
| Recommended welding standards: | 480℃/4S |
| Company Info. |
| Shenzhen Junbo Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Jbocnt Group MT60 MT30 Male Female 3.5MM 3 Pin Pole Bullet Connector Power Plug Socket MT60 Connector For RC Motor Drone Lithium Battery Aircraft Model Connector
Product advantages
| ☑ Widely applicable |
| ☑ High current, compact size |
| ☑ Easy to plug and unplug |
> Core Features
Locked structure. Mating and unmating lifespan >1000 cycles, vibration resistance meets IEC 60512 standards.
>30A high current carrying capacity
Pure copper silver-plated contacts (cross-sectional area ≥50mm²), contact resistance <0.5mΩ, temperature rise ≤30K @ full load
Supports a wide voltage range of 4.5V-1000V, UL1977/EN61984 certified
>High-temperature resistance and safety protection
High-temperature-resistant housing material (PA66 + 30% GF), long-term operating temperature -40°C to 125°C
Integrated HVIL (High Voltage Interlock) function, compliant with SAE J1742 standards
> Technical Advantages
Quick plug-in/plug-out: Push-pull self-locking mechanism enables one-handed operation, mating time <3 seconds
Anti-mismatch design: Barbed terminals with guide grooves reduce mismating rate to 0.1%
Global compliance: CE/UL/TUV certified, RoHS 3.0 & REACH compliant
> Typical Applications

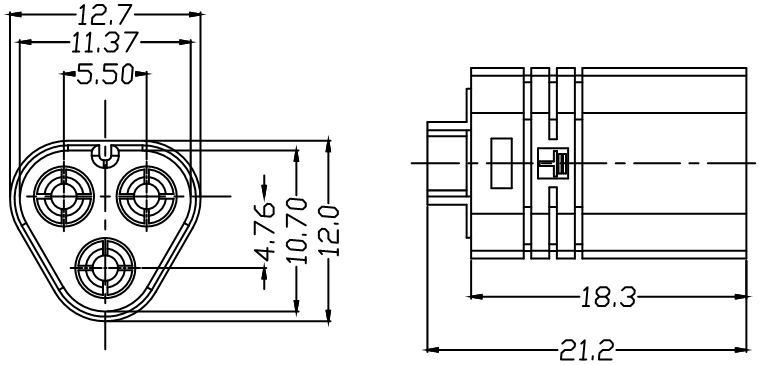

What is the size?
Male
Female
OUR CUSTOMERS
FAQ
1.Q: What are your advantages?
A: We have a strong supplier network and can provide professional
service and competitive pricing.
Q: How can I trust you?
A: We have 19 years of experience in connector production. We are
available anytime, anywhere to video chat with you about our
production line.
Q: Do you offer a warranty?
A: Of course. If you have any questions regarding quality or
service, please feel free to contact us and we will provide you
with professional after-sales service.
Q: Where are you located? Can I visit you?
A: Of course. You are always welcome to visit our factory.
Q: What about delivery time?
A: We typically ship orders within seven days for orders with
sufficient stock. If out of stock, delivery time may vary.
|
