| Categories | Belt Dryer |
|---|---|
| Brand Name: | TONTEN |
| Model Number: | TT-BD4x8 |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets per month |
| Delivery Time: | 7-10 work days |
| Packaging Details: | Export wooden packing or in container |
| Mesh belt layers: | 4 layers |
| Use temperature: | 30-80℃ |
| Paving thickness: | 30-120mm |
| Belt width: | 1840/2760 |
| Monitor power: | 1.1kw |
| Outlet conveyor power: | 1.1kw |
| Effective drying area: | 53m3 |
| Type: | Stainless Steel Belt Dryer Machine |
| Company Info. |
| TONTEN MACHINERY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
Pepper Chili Belt Dryer Machine Stainless Steel Food Dryer Drying Equipment
Product introduction:
As a special drying equipment, the mesh belt pepper food dryer
plays a pivotal role in the field of food processing with its high
efficiency, energy saving and environmental protection. The dryer
adopts advanced mesh belt drying technology, which can evenly
spread food, vegetables, fruits, medicinal materials, peppers,
chrysanthemums, blueberries, etc. on the mesh belt, and drives the
mesh belt to move back and forth in the dryer through the
transmission device. At the same time, clean and stable hot air
flows through the materials, quickly evaporating the moisture in
the materials, thereby achieving efficient drying. The mesh belt
drying equipment adopts a special air supply method to make the
material heating area larger and more uniform, better preserve the
color, aroma and taste of the intrinsic quality of the material,
and do not damage the characteristics of the dried material.
Features:
1. Through closed circulation and heat recovery, it effectively
reduces energy consumption and environmental pollution, and is
energy-saving and environmentally friendly
2. Temperature control of the drying process is precise, which
ensures the quality and color of the dried materials
3. Drying efficiency is high,is can greatly shortens the drying
time of the dryer materials and improves production efficiency.
Belt dryer machine specification:
Model | TT-BD4x6 | TT-BD4x8 | TT-BD4x10 | TT-BD5x8 |
Mesh belt layers | 4 layers | 4 layers | 4 layers | 5 layers |
Use temperature ( ℃) | 30-80 | 30-80 | 30-80 | 30-80 |
Paving thickness( mm) | 30-120 | 30-120 | 30-120 | 30-120 |
Belt width( mm) | 1840/2760 | 1840/2760 | 1840/2760 | 1840/2760 |
Monitor power(Kw) | 1.1 | 1.1 | 1.1 | 1.1 |
Outlet conveyor power(Kw) | 1.1 | 1.1 | 1.1 | 1.1 |
Total Power(Kw) | 18-29 | 33-42 | 42-45 | Customized |
Effective drying area(m3 ) | 40 | 53-60 | 68 | Customized |
Operating temperature ( ℃) | 40-85 | |||
Overall Dimension (mm) | 16000x8000x3200 | 18500x8000x3600 | 20000x8500x4200 | Customized |
Drying cycle (hours) | 1-15h/coutinous drying,According to the moisture content of the
drying material | |||
control method | PLC cotrol system | |||
Material Description | The parts in contact with the material are all 304 stainless steel
or food grader rubber strips | |||

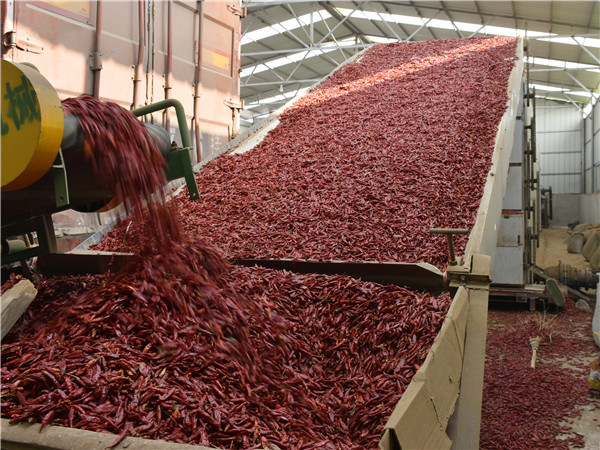

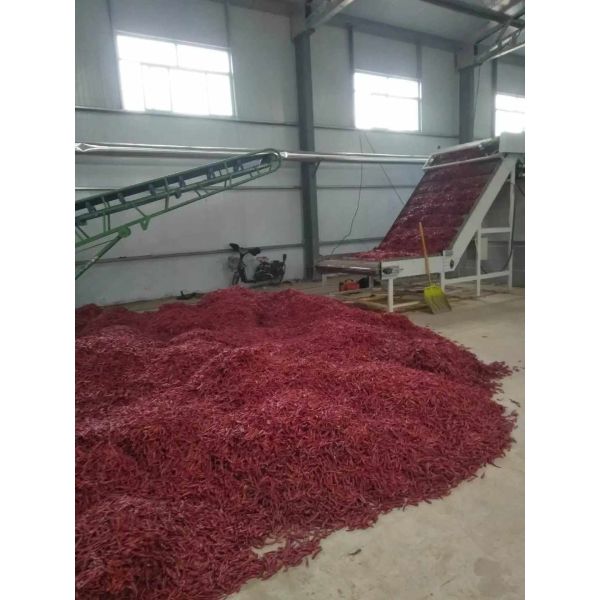

Customer site:


|
