1.4G 1425-1450M1400-1450M1400-1530M 12dBi UAV directional antenna 256x256x40mm

Name: 14G 14251450M14001450M14001530M 12dBi UAV directional antenna 256x256x40mm
Brand: Leenz
Price: 1 USD

1.4G 1425-1450M1400-1450M1400-1530M 12dBi UAV directional antenna 256x256x40mm

Categories	Outdoor Waterproof Directional Antenna
Brand Name:	Leenz
Model Number:	LZANT-10722-A
Certification:	RoHs
Place of Origin:	China
MOQ:	10
Payment Terms:	T/T
Supply Ability:	5K per day
Delivery Time:	15 days
Frequency:	1400-1530MHz
VSWR:	<2.0
Peak Gain:	12dBi
Impedance:	50

Contact Now

Add to Cart

Company Info.

Dongguan Leenz Electronics Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1. Specification

A. Electrical Characteristics
Frequency	1400-1530MHz
S.W.R.	<= 2.0
Antenna Gain	12dBi
Polarization	Vertical
Horizontal Beamwidth	50±5°
Vertical Beamwidth	50±5°
F/B	>23dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	25625640mm
Radome material	ABS
Weight	1.2Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

2.2 Total Efficiency & Gain:

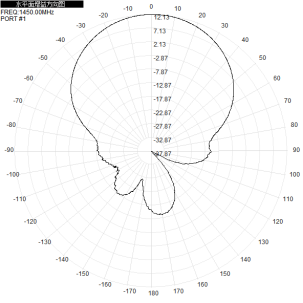

2.3 Radiation Pattern
