Chroma 63201 DC Electronic Load 2.6KW 300A 80V Power Testing Equipment for High Power UUT

Name: Chroma 63201 DC Electronic Load 26KW 300A 80V Power Testing Equipment for High Power UUT
Brand: Chroma
Price: 1 USD

Chroma 63201 DC Electronic Load 2.6KW 300A 80V Power Testing Equipment for High Power UUT

Categories	AC DC Variable Power Supply
Brand Name:	Chroma
Model Number:	63201
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	in stock
Packaging Details:	Carton
Product name:	DC Power Supply
Condition:	Pre-Owned
Functions:	Tested, in Full Working Conditions
Brand:	Chroma
Form Factor:	Benchtop
Current:	300 A
Power:	2.6 kW
Voltage:	80 V

Contact Now

Add to Cart

Company Info.

Shenzhen Meigaolan Electronic Instrument Co. Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Chroma 63201 DC Electronic Load 2.6KW 300A 80V Power Testing Equipment for High Power UUT

Chroma 63201 DC Electronic Load 2.6KW/ 300A/ 80V in Full Working Conditions

Product Overview

The Chroma 63201 DC Electronic Load is designed for testing DC power sources, power electronic devices, and components. With high power rating and parallel/synchronization capabilities, it's ideal for testing high-power units under test (UUT) such as SMR, UPS, batteries, and fuel cells.

Key Features

Power Rating: 2600W ~ 15600W
Voltage Range: 1-80V / 2.5-500V
Current Range: Up to 1000A
CC, CR, CV, CP Load Modes
Master/Slave Paralleling Control Mode
Dynamic Loading: Up to 20kHz
Only Need 1V to Draw Rated Current
Programmable Slew Rate: Up to 41A/µS

Specifications

Form Factor	Benchtop
Current	300 A
Power	2.6 kW
Voltage	80 V

Frequently Asked Questions

Can you ship orders to Canada or Australia?

Yes, we ship orders worldwide.

What delivery methods do you use and what is the delivery time?

We ship by EMS, DHL, FedEx, UPS, TNT with tracking numbers. Usual delivery time is 4-7 workdays.

What is your payment term?

100% T/T payment before shipment.

How can I ask any other questions?

You can contact us online or leave us messages below.

Our Services

One-stop service from manufacture to shipping
Inquiries replied within 24 hours
Well-trained English-speaking staff to answer all inquiries
Distributor support for unique designs and current models
Protection of your sales area, design ideas, and private information

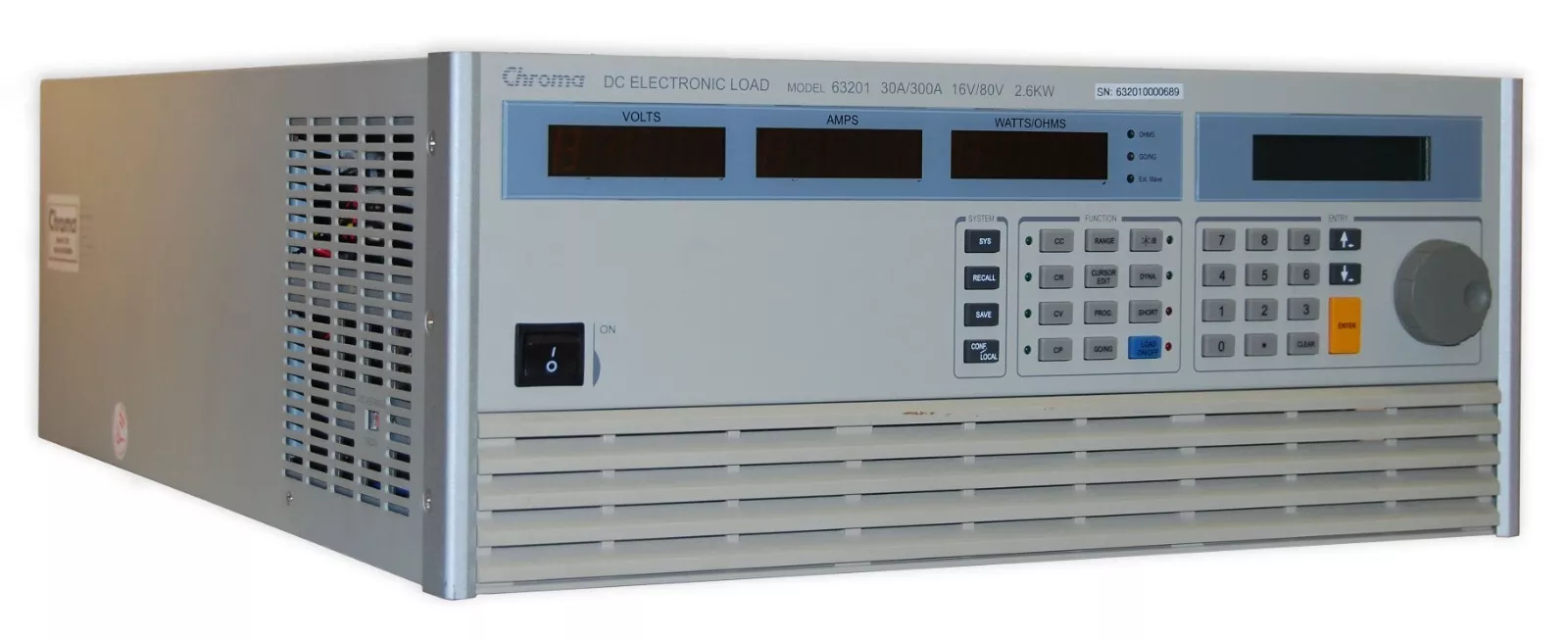

CHROMA 63201 DC Electronic Load - Front view showing control panel and display
