| Categories | GE Mark VIe Controller |
|---|---|
| Brand Name: | General Electric |
| Model Number: | IC693CHS391 |
| Place of Origin: | USA |
| MOQ: | 1 |
| Price: | 66USD |
| Payment Terms: | T/T |
| Supply Ability: | in stock |
| Delivery Time: | 2-3 work days |
| Packaging Details: | Brand new and original |
| Product Model: | IC693CHS391 |
| Product Parameters: | 10 Slot Expansion Baseplate |
| Country of origin: | USA |
| Place of shipment: | Xiamen, China |
| Estimated Shipping Size: | 44.4x2.2x12.9cm |
| weight: | 0.95 kg |
| Computer Connection: | Supported with a PCI Card |
| Product Lifecycle Status: | Discontinued/Obsolete |
| Company Info. |
| AMIKON LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

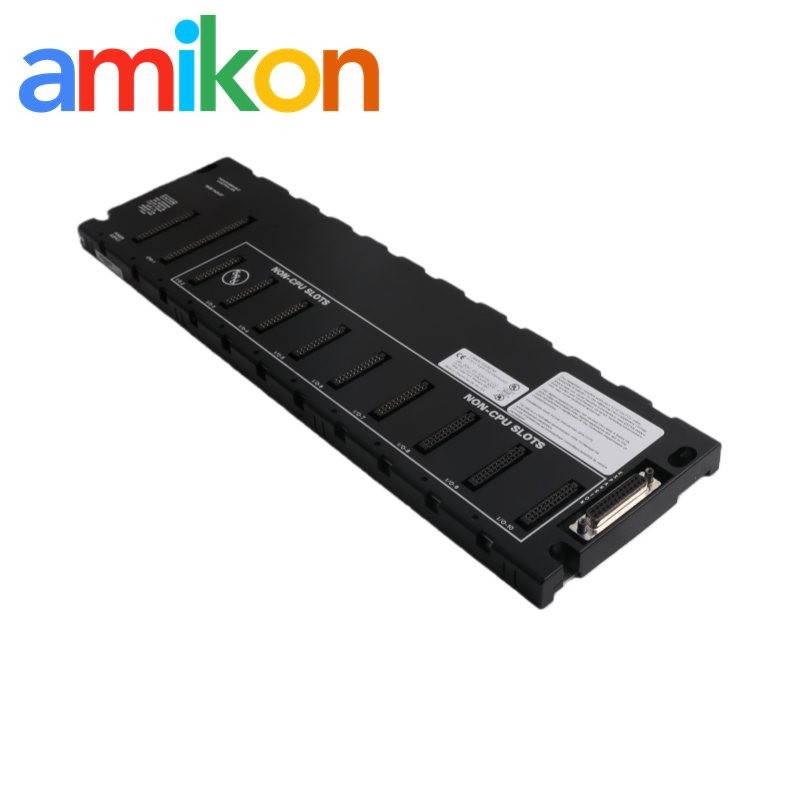

The IC693CHS391 is a modular CPU baseplate from GE Fanuc’s Series 90-30. It’s designed to make your PLC setup flexible and easy to manage, supporting modular CPUs, I/O modules, and a Power Supply module.
Key Features: Slots: 10 total 1 CPU slot (Slot 1) – specially sized for CPU modules or special option modules like the FIP Bus Remote I/O Scanner. 9 I/O slots (Slots 2–10) – designed specifically for I/O or option modules. Power Supply slot – installed in the left-most slot, not included in the slot count. Expansion port – 25-pin female connector on the right side, for connecting expansion or remote baseplates. Modular & Flexible: You can easily replace or upgrade the CPU or modules if you need extra features. Node Address: Defaults to 0, adjustable via programming software. Expansion Support: Depending on the CPU, supports up to 4 or 7 expansion baseplates. |
Technical Specs: Current: 420 mA Voltage: 5 V DC Mounting: Panel mount only, secured with screws and washers. Can be mounted vertically or horizontally. Design: Open enclosure for easy installation and maintenance. Connectivity: Can connect to a PLC or a PC via a PCI card. Remote connections require a cable less than 700 feet. Environmental Requirements: Keep within specified temperature range; avoid water, dust, and harmful chemicals. |
Only one modular CPU baseplate is allowed per system. Any additional baseplates must be expansion or remote I/O types. | Power supply goes into the left-most slot, leaving all numbered slots available for CPU or I/O modules. | CPU always goes in Slot 1, while Slots 2+ are reserved for I/O/option modules. | Expansion or remote baseplates connect on the right-hand expansion port, supporting multiple CPUs depending on the setup. |
Power Supply Module:
Must be installed in the left-most slot (not numbered).
This slot is unique in size and type, only supporting a Power Supply module.
CPU Module / Special Option Module:
Must be installed in Slot 1, labeled CPU/1.
Slot 1 is specially sized to support a CPU module or special option modules such as the FIP Remote I/O Scanner (IC693BEM330).
I/O and Option Modules:
Slots 2 and above are unique in size and type, designed exclusively for I/O or Option modules.
Expansion & Remote Baseplates:
A 25-pin D-type female expansion connector is located at the right end of the baseplate.
Allows connection to Expansion or Remote baseplates.
Modular CPU Features:
CPU modules are replaceable or upgradeable for additional features.
Only one CPU baseplate is allowed per system. Additional baseplates must be Expansion or Remote types.
By default, a modular CPU baseplate is assigned Rack Number 0.
