PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed

Categories Corrugated Carton Folder Gluer Machine
Certification: CE,ISO
keywords: cosmetic box folding gluing
Model Number: PT-A1250
Function: paperboard folding gluing
MOQ: 1 sets
Delivery Time: 30-60days
Automatic grade: Fully automatic
Payment Terms: L/C,T/T,Western Union
Price: To be negotiated
Color: as request
Supply Ability: 10 sets/month
Brand Name: GR
Warranty: 1 year
Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing
Place of Origin: Hebei province,China
Speed: 0-300m/min
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PT-A1250 Fully Automatic Double-correction Model Box Folding Gluing Machine with 0-300m/min Speed

PT-A1250 Double-correction Model Box Folding Gluing Machine
Product Overview

Automatic Crash Bottom Lock Potato Chips Boxes Folder Gluer Gluing Machine is the most competitive multi-functional folder gluer machine designed by our company independently. It can fold and glue many simple and complicated carton boxes.

Its ease of use, attractive pricing and broad scope of application make a new leap in folder gluer machine field. It combines a variety of folder gluer characteristics and changes many disadvantages of crash lock bottom folder gluer machines, such as complicated structure, difficult operating and high cost.

This machine is ideal for the current packaging and printing industry-competitive business with variety, small quantities, and tight delivery schedules.

PT-A1250 Double-correction Model Box Folding Gluing Machine overview
Technical Specifications
ParameterSpecification
Line Speed0-180m/min, Continuous adjustment
Usage Paper210-800 g/ms, paperboard A/B/C/E/F 3-fly corrugated cardboard and 5-fly corrugated cardboard
Box FormingBottom-lock, straight line box, double walls box
Fold Method1st folds 180°, 3rd folds 90°, 2nd & 4th folds 180°
Paper FeedingAutomatic feeding, grinding unit
Electric Power11kw
Dimension14*2*1.6m
Weight5600kg
ConditionNew
PT-A1250 technical diagram
Machine Components & Features
Paper feeding section
Paper Feeding Section

6pcs adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife for easy adjustment of feeding belts.

Aligner Section

Equipped with auto-correction device to correct the obliquity and ensure the correct feeding.

Aligner section
Pre-folding section
Pre-folding Section

Double-board structure with a set of pre-folding knife. Pre-fold angle is 180° and 135°, especially suitable for small but high cartons, more satisfactory while rapid prototyping.

Lower Gluing Tank

Equipped with the lower gluing tank for efficient adhesive application.

Lower gluing tank
Folding and closing section
Folding and Closing

The folding is equipped with driving belt, folding belts have corrective function, extension work, making the box forming more stable.

Trombone Section

Adjust the pressure easily and reliably to ensure gluing quality. Equipped with pneumatic counting device for convenient counting. The press has independent speeder allowing operators to set collecting speed.

Trombone section
Transmission System

Press: Equipped with one-touch pneumatic pressure adjustment for easy operation. Press has two functions: 1. Waiting Function - when feeding is paused, press will auto enter waiting state. 2. Travel switch - pauses the machine in case of wrong collecting.

Transmission system
Packing and Shipping

Adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.

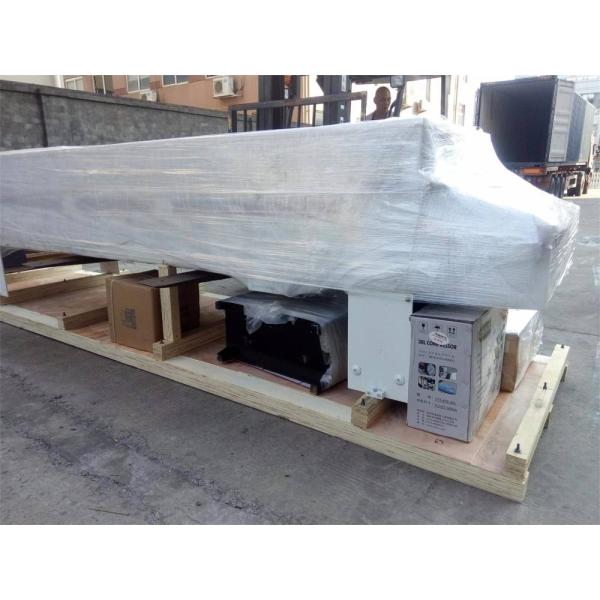

Machine packaging example Shipping preparation
Our Factory

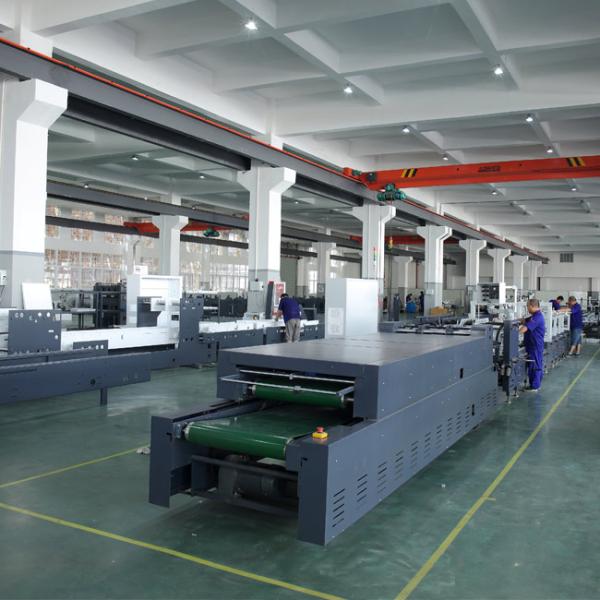

Manufacturing factory facility
