| Categories | 18650 Lithium Battery Pack |
|---|---|
| Brand Name: | GUANYU |
| Model Number: | GUANYU-FF315 |
| Certification: | CE ROSH UN38.3 MSDS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 100 packs |
| Price: | Negotiable |
| Payment Terms: | 30% before production，70% before delivery |
| Supply Ability: | 10000 packs per month |
| Delivery Time: | 3-6 weeks |
| Packaging Details: | Standard export carton |
| Type: | Lithium Battery |
| Cycle Life: | ≥1000times |
| Application: | Sweeping machine medical equipment |
| Capacity: | 3200mAh 3000mAh or customized |
| Standard Voltage:: | 14.8V |
| Oem: | Acceptable,Welcome,Yes |
| size: | customized |
| weight: | customized |
| High Light: | Factory customized 14.8V3200mAh lithium battery pack robot sweeper battery pack |

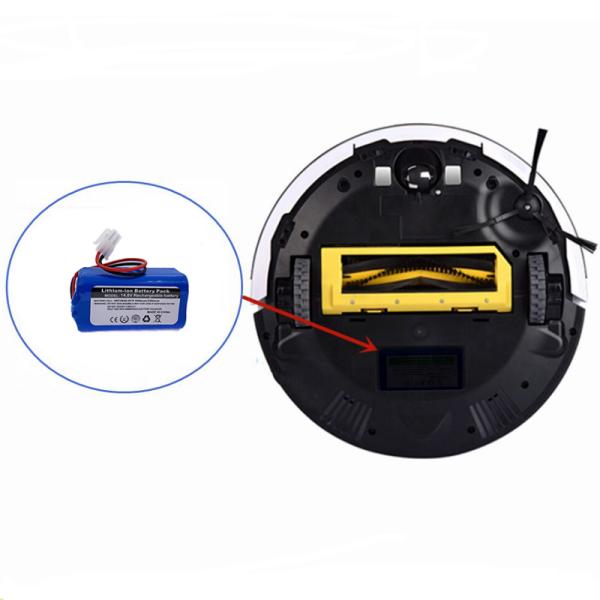

Factory customized 14.8V3200mAh lithium battery pack robot sweeper battery pack
Product specification
| No. | content | Testing method | Remark |
| 1 | Charge cut-off voltage | 14.8V | |
| 2 | Discharge cut-off voltage | 11V | |
| 3 | Standard charge | Under the condition of the ambient temperature of 25±2℃,Charge the battery at constant current of 0.2C to reach 14.8V. Then charge the battery at constant 14.8V voltage until the charging current decreasing to 0.02C. | |
| 4 | Standard discharge | After the standard charging , rest for 1 hour then discharge to 11V@0.2C. | |
| 5 | Shipments voltage | 12-14V | capacity ≤30 % |
| 6 | Maximum Charge Current | ≤600mAh | |
| 7 | Maximum continuous working current | ≤3200mAm | |
| 8 | Rated capacity | Typical capacity:3200mAm Minimum capacity:3050mAm | standard discharge after standard charge |
| 9 | Operation temperature range | charging:10~45℃ humudity:60±25% discharging:-20~60℃ | 60±25%R.H |
| 10 | Storage temperature | ≤1 month: -20 ~ 45℃ ≤3 months: 0 ~ 30℃ ≤1 year: 0 ~ 30℃ | 10~25℃ 60±25%R.H Best 10~25℃ for long-time storage |
About company:
| 1. Passed ISO9001, ISO14001, certified High-Tech & safety production enterprise; |
| 2. 28 engineers providing technology support on product constructure, PCM, BMS, battery and matching charger solutions etc; |
| 3. Automated high-speed SMT equipments and automated battery pack assembly line to ensure the quality consistancy and big volumn lead time; |
| 4. SAP + MES systems monitoring from raw material to final production; |
| 5. Core strength: |
| a). multi-point temperature monitoring |
| b). SOC/SOH/FCC update automatically |
| c). protocol communication technology |
| d). cell balancing |
| e). failure recording |
| f). 10uA comsumption after shutdown |
Contact with our sales team for your OEM and ODM order.
OEM/ODM Service:
If you want to display your own brand logo in products, bags, labels or anywhere. Or you need to develop battery packs according to your product orientation. Our OEM and ODM services are ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet
|
