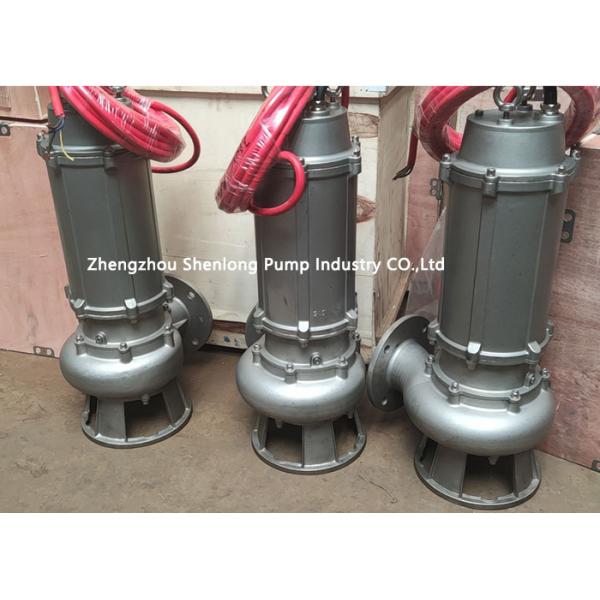

316 Stainless Steel Sewage Submersible Pump For Drainage Dirty With Seawater

316 Stainless Steel Sewage Submersible Pump Sea Rain With Control Cabinet Float for TURKS & CAICOS IS

Model: 80WQ40-10-2.2

- Outlet dia: 80mm

- Flow rate: 40 cubic meter oer hour

- Head meters: 10m

- Motor power: 2.2kw

- Power supply: 240V/60Hz, 3 phase

- Pump accessories: Match 2.2kw control cabinet(ABB VFD)

- Material: 316 stainless steel(pump and control cabinet)

Testing each water submersible pump, matched with control panel.

Second sewage submersible pump types:

-Model: 100WQ100-10-5.5

-Outlet dia: 100mm

-Flow rate: 100 m3/hr

-Head meters: 10m

-Motor power: 5.5kw

-Power supply: 240V/60Hz, 3 phase

-Match 5.5kw ABB VFD control cabinet(1 control cabinet control 2 pumps)

-Match 20kva variable-frequency power supply (1 set provide power to 2 pumps)

Sewage submersible pump models:

(Notice: flow rate, head meters, material, power, ODM OEM is available)

316 stainless steel material suit seawater and corrosive liquid.

The customer from TURKS & CAICOS IS, is a country by the sea. So all equipment must be Corrosion resistant.

Customer need sewage pump used for the sea water and dirty water after the ebb of the sea and rain. And also need control cabinet control sewage pump. Due to the application, so the head need low, main need large flow sewage pump.

Due to the power is single phase power supply, so the pump and control cabinet suit customer’s working conditions. For the control cabinet must be provided single power.

For the not more than 2.2kw VFD control cabinet, the inlet power can be single phase power, the outlet can be 3 phase power. So 2.2kw 3 phase sewage pump can general used for customer’s require working condition.

For the 5.5kw sewage pump is 3 phase, the 5.5kw VFD control cabinet must be 3 phase. So the control cabinet inlet power must be 3 phase. The variable-frequency power supply suit the working condition. Variable-frequency power supply can be adjust the voltage, frequency and phase. Only the power supply can start the Variable-frequency power supply, the pump can general working.

Note: control cabinet match float, the float connect wire must be correct. If wrong, the float can not working.

FAQ:

Q:How long is warranty?

A:About 12 months.

Q:How long is production lead time?

A:Depends on quantity, the normal small amount production is about 10-25 days.

Q:What’s type of shipping?

A:Usually by sea, and will be based on the customer's destination to choose the most favorable most appropriate way

Q:What is the shipping terms you can provide?

A:Depends on customer's requirements, we can provide different transportation terms,

such as EXW, FOB, CIF.

Q:How can I pay for my items? What is the payment you can provide?

A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.

    Zhengzhou Shenlong Pump Industry CO.,Ltd, a professional reputable ODM OEM water pump manufacturer in China since 1996, recognized by CE and ISO, ABS, SGS, BV.

  Main products: Electric Submersible Pump for pumping clean water, hot water and sea water with bronze, SS304, SS316, SS316L, Dupex stainless/SS904L; Mine Submersible Pump/Submersible Motor/Sewage Submersible Pump/Slurry Submersible Pump/Fountain Submersible Pump/Axail Flow Submersible Pump/Surface Centrifugal Water Pump. Related business: kinds of water pipes, cables, control panels, inverter and other pump spare parts.

   Over 70 countries’ customers are enjoying our pumps and service. Our pumps are widely used in fields, such as seawater aquaculture & desalination, offshore, jack-up, floating dock, shipyard, irrigation, wastewater treatment, fountain projects. We are seeking for local water pump service business and dealer who is professional in water pumps. Welcome to join us.

    Zhengzhou Shenlong Pump Industry CO.,Ltd has three complete casting lines, including Expendable casting process, wax casting mold, coated sand, it can meets the different requirements on the dimensional accuracy of casting. The wax casting mold line, special for stainless steel material, was finished in the thermostatic workshop to guarantee the casting accuracy, meanwhile, shorten the whole production time.

  More than 85 sets production machine, includes grinding machine, CNC, lathe, Milling, High speed punch press machine, testing machine, etc., with sufficient spare parts stock to guarantee the production capacity 11,000 sets per month. From material purchase, metalworking, impeller dynamic balance, motor winding, insulation and pump assembling, passed more than 27 inspection processes, to ensure the quality meet a criterion.
