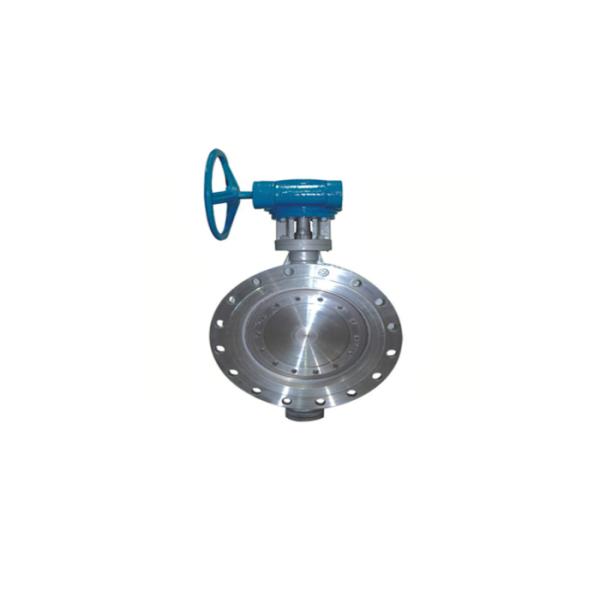

Triple eccentric butterfly valve DN600 specifications

Nominal diameter: DN50 ~ 2000mm

Nominal pressure Pn (LB) : 0.6 ~ 6.4MPa

Applicable medium: air, water, steam, gas, oil and acid, alkali, salt with weak corrosive medium, etc

Applicable temperature: carbon steel: -29℃~425℃;Stainless steel, chrome-molybdenum steel: -40℃~550℃

Leakage rate :0.1*DNmm3/S (in line with GB//T13927-92 standard)

Actuation: handle, turbine, electric, pneumatic.Electric and pneumatic devices adopt famous and superior products at home and abroad, with more reliable performance (can be specified by users).

Stem can be lengthened according to user's requirements.

When the butterfly valve is used in urban heating pipe network, the two-way pressure sealing can be selected according to the user's demand.

Triple eccentric butterfly valve DN600 Main parts and materials

Body: carbon steel, stainless steel, chromium molybdenum steel, alloy steel

Stem: 2Cr13, 1Cr13 stainless steel, chromium molybdenum steel

Butterfly plate: carbon steel, alloy steel, stainless steel, chromium molybdenum steel

Bearing: austenitic stainless steel, 304 nitriding

Sealing ring: stainless steel and high temperature resistant asbestos plate is composed of multiple layers

Filling: flexible graphite

Body Test :1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test :1.1 times the working pressure with water.
Function / Operation Test :At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test :On request, any other test can be carried out according to special instruction by client.
