Main Power 22KW C Z Purlin Roll Forming Machine Fast Change High Durability

Main Power 22KW C Z Purlin Roll Forming Machine Fast Change High Durability

1. Description of CZ Purlin Roll Forming Machine

2. Profile drawing of CZ Purlin Roll Forming Machine

3. Workflow of CZ purlin roll forming machine

4.Machine specification of CZ purlin roll forming machine

Machine Specifications
Weight	About 9.5tons
Size	About 10.1*1.2*1.2m(length x width x height)
Color	Main color: blue or as your requirement
	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	1.5-3.0 mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	18
Diameter of forming rollers shafts	60mm
Roll Forming Speed	15-25m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	Cr12MoV steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 22kw hydraulic motor
Electric voltage	According to customer’s requirement

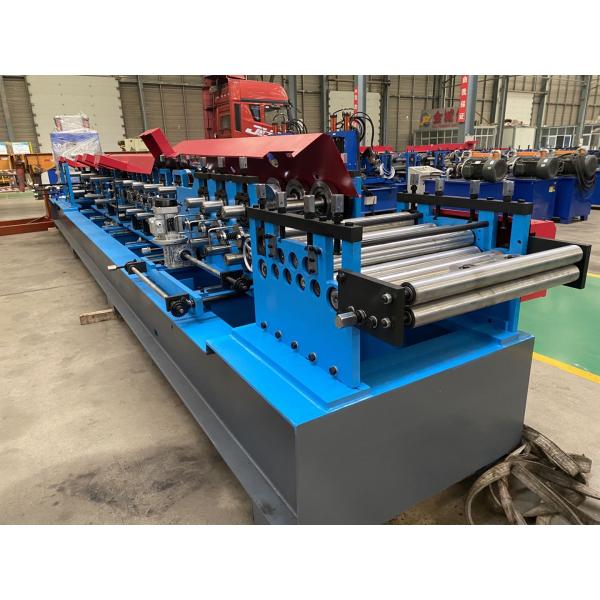

6. Machine picture of CZ Purlin roll forming machine

7. Application

The CZ purlin which was produced by CZ purlin roll forming machine can be used for the major stress structure of the large and middle-sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.

8. Our service

A. Foreign debugging

If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day

B. Guarantee period

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).

C. Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.

D. Lifetime services

Life time services to every customer.

.

Botou Golden Integrity Roll Forming Machine Factory is located in "the town of casting molds", enjoying convenient and highly effective transportation for being close to Tianjin Port, No.104 National Way, No.106 National Way and Jingjiu Railway.

Our technical force is abundant. Production equipment is advanced, detection means is complete. We specialize in the professional production of various types of roll forming machines, and the development and production of fully automatic intelligent control roll forming machines of C-shaped steel and dust collector anode plates, and other equipment.

On the basis of traditional roll forming machines, we also develop new computer fully automatic roll forming machines, roof and wall panel forming machines, glazed tile forming machines, floor bearing plate forming machines, high-speed barrier devices, double color steel tile molding machines, C and Z steel machines, arch appliances, sandwich composite plate machines, shearing machines, bending machines, and heat insulation sandwich composite machines. Our products have reached the advanced level in the same industry. As beautiful appearance, reasonable structure, and tile-based standards of our products, they are popular among new and old customers. Products are sold to domestic enterprises.

Our factory has highly qualified and experienced professionals and highly skilled construction workers to serve you. Our factory can design and produce various kinds of special-shaped cold-formed molding equipment for different needs of the users.

You are welcome to contact us for more information.
