| Categories | Clear PETG Sheet |
|---|---|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Jiaou |
| Model Number: | PETG Sheet |
| Packaging Details: | Sample: A4 size rigid PETG with PP bag in box Sheet packing: 30kg per bag or as your requirement Pallets packing: 500- 2000kg per wooden pallet Container loading: 20 tons as normal |
| Supply Ability: | 100 Tons Per Day |
| MOQ: | 1000 kilograms |
| Price: | Negociated |
| Certification: | FDA, GRS, Reach, RoHS, ISO9001 |
| Payment Terms: | T/T |
| Delivery Time: | 7 Work Days |
| Product name: | Clear PETG Sheet Light Box |
| Material: | PETG |
| Thickness: | 0.18-7MM |
| Size: | 2050MM*3050MM |
| Processing Service: | Cutting |
| Surface: | Glossy |
| Color: | Custom color available |
| Application: | Light Box |
| Characteristics: | Customized design |
| Sample: | Available |

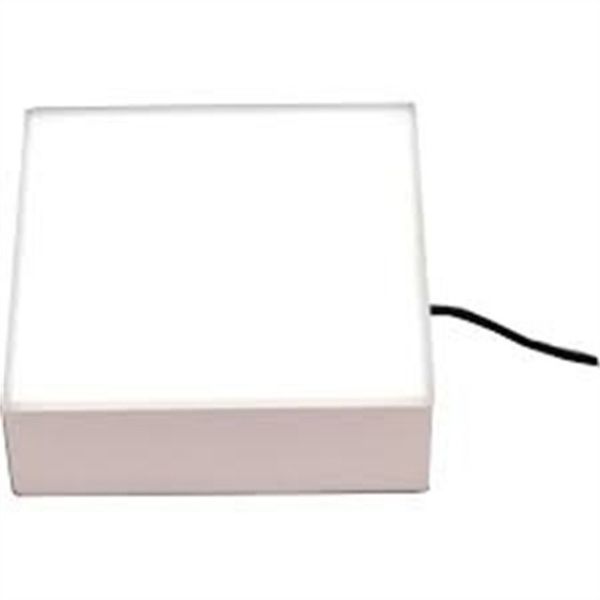

Clear PETG Sheet Anti-fog Custom Design PETG Plastic High-Quality Light Boxes
Product Description
PETG combines transparency, high impact resistance (much better than acrylics), thermoformability without pre-drying (like polycarbonate), and attractive cost-effectiveness.
PETG is as transparent as glass and easy to manufacture.
Advantages:
| Item | Typical Value | Testing Method |
| Intrinsic Viscosity(dL/g) | 0.750+/-0.015 | Ubbelodhe viscometer |
| Specific Gravity(kg/cm³) | 1.27 | ASTM D792 |
| Moisture Absorption(%) | 0.15 | ASTM D570 |
| Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) | 496 | ASTM D638 |
| Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) | 281 | ASTM D638 |
| Elongation@Yield 50mm/min( 2inch/min)(%) | 3.7 | ASTM D638 |
| Elongation@Break 50mm/min(2 inch/min)(%) | 136 | ASTM D638 |
| Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) | 620 | ASTM D790 |
| Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) | 20800 | ASTM D790 |
| Low temperature falling dart impact(g) | 791 | ASTM D358 |
| Atmospheric temperature falling dart(g) | 1701 | ASTM D358 |
| Lzod Impact Strength Notched@23 ℃(J/m) | 98 | ASTM D256 |
| Rockwell Hardness(℃) | 106 | R-scale |
| Heat Distortion Temperature 0.45Mpa(66 psi)(℃) | 77 | ASTM D648 |
Application For PETG Sheet
PETG sheet is used as a Midrange priced product between Acrylic and Polycarbonate. The clarity of PETG approchies that of Acrylic and the Impact Resistance of Polycarbonate. Also is used in Signing, Glazing, POP Displays, etc.
FAQ
FAQ
Q1. Are you a factory or trade company?
A: We are a professional manufacturer with 15 years' experience if you have interest welcome to visit our factory.
Q2. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free, but charge by freight collection.
Q3. How about the lead time?
A: Normal sample supply it at once. Special samples need 3 days. mass production is generally 5-10 working days after receiving your initial payment.
Q4. Do you have any MOQ limits?
A: Normal Only 1000kgs, Special colors about 2000kg.
A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
|
