2L Plastic Bottle Manufacturer Machine , PP Plastic Blowing Machine

Categories Plastic Blow Molding Machines
Brand Name: SUNRISE
Model Number: KYHTS-2L
Certification: EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
Place of Origin: Jiangsu, China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 6 units per year
Delivery Time: 120 days
Packaging Details: Standard shipping wooden box or stretch film packaging
Available material: PE, PP, etc.
Max. Product Volume: 30L
Dry Cycle: 400x2pcs/h
Machine Size: 4.8*3.9*3.1m(L*W*H)
Machine Weight: 17.5ton
Installed capacity: 73kw
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

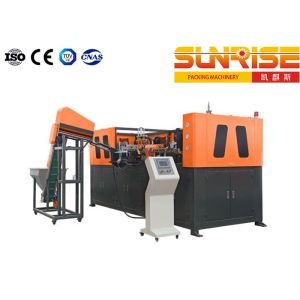

2L Plastic Bottle Manufacturer Machine , PP Plastic Blowing Machine

High Quality High speed 0.5l-2l Plastic Blow Molding Machine


Main Features:


* Bilingual touch screen: moved by Rotary arm to provide user easy and smart operation

* Double liner guide rail: Unique “liner guide” to the clamping structure to ensure mold-lock uniform, knit line smoother, stable, and quite working.

* Mould locking system: adopts Crank Arm-Center lock design to provide the strong clamping force. Suitable to produce 0.5-2Lplastic drum, low energy cost, high output.


Product Details:


Main Parameters
Available materialPE, PP, etc.
Max. Product Volume30(L)
Dry Cycle400x2(pcs/h)
Machine Size4.8*3.9*3.1(L*W*H)(m)
Machine Weight17.5(Ton)
Installed capacity73KW
Plasticizing System
Screw Diameter100(mm)
Screw L/D Ratio25/28L/D
Plasticizing capacity150-220(kg/h)
Screw Heating Zone4/5(Zone)
Screw Drive Power55/75(KW)
Extrusion Die Head
TypeContinuous Die Head
NO. of Heating Zone5(Zone)
Die Heating Power10(KW)
Max. Die Diameter280(mm)
Opening And Clamping System
Clamping Force180(KN)
Mold Stroke460-960(mm)
Max. Mold Size600x700(WxH)(mm)
Hydraulic System
Oil Pump Power15(KW)
System pressure12(MPa)
