| Categories | Pneumatic Tube Fittings |
|---|---|
| Brand Name: | FESTO |
| Model Number: | NPQH-L-Q10-E-P10 |
| Place of Origin: | China |
| MOQ: | 1 PCS |
| Price: | EXW USD3-5 |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 2000 pcs per week |
| Delivery Time: | 7-10 working days |
| Packaging Details: | plastic bag, carton |
| Specifications: | NPQH-L-Q10-E-P10 |
| Order no: | 578273 |
| Brand: | FESTO |
| Design: | L-shape |
| Note on materials: | RoHS-compliant |
| Thrust ring material: | PEI |
| Company Info. |
| Airwolf Automation |
| Verified Supplier |
| View Contact Details |
| Product List |
About product
Design:L-shape
Corrosion resistance class CRC:3 - high corrosion stress
Product weight:29.2 g
Material housing:Brass, chemically nickel-plated
Product Technical Data
| Size | Standard |
| Nominal size | 9 mm |
| Tubing insertion depth | 18.3 mm |
| Design | L-shape |
| Size of pack | 10 |
| Design | Push-pull principle |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | 0°C-150°C |
| Product weight | 29.2 g |
| Pneumatic connection, port 1 | For tubing outer diameter of 10 mm |
| Pneumatic connection, port 2 | For tubing outside diameter of 10 mm |
| Note on materials | RoHS-compliant |
| Material housing | Brass, chemically nickel-plated |
| Guard ring material | PEI |
| Material release ring | Brass, chemically nickel-plated |
| Material tubing seal | FPM |
| Material tubing clamp component | High-alloy stainless steel |
| Thrust ring material | PEI |

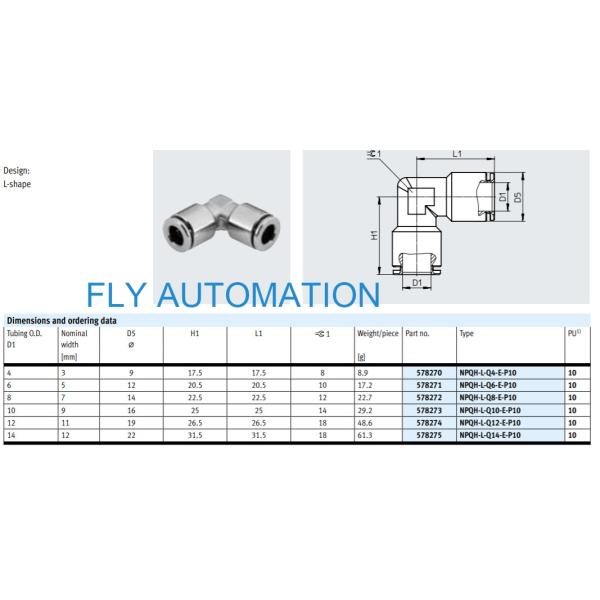

Push-in L-connector NPQH-L
There are so many models.Welcome to enquiry !
|
