| Categories | Chemical Machine |
|---|---|
| Mixer Type: | Sigma / Z blade |
| Barrel Volume (L): | 500 L |
| Material Processed: | Chemicals |
| Max. Loading Volume (L): | 300 L |
| Range of Spindle Speed(r.p.m): | 21 - 37 r.p.m |
| Max. Loading Capacity: | 300kg |
| Weight (KG): | 4000 KG |
| Material: | SUS304, SUS304L, SUS316, SUS316L, SS304 ; SS316 ; Carbon steel |
| Condition: | New |
| Product Type: | Adhesive, Chewing gum, BMC, Rubber |
| Application: | Viscous Fluid |
| Additional Capabilities: | Heating |
| Place of Origin: | Shandong, China |
| Brand Name: | SANWEI |
| Voltage: | Customer Required |
| Dimension(L*W*H): | Customized |
| Power (kW): | 37 kW |
| Warranty: | 1 Year |
| Key Selling Points: | Long Service Life |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Showroom Location: | None |
| Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year |
| Core Components: | Motor |

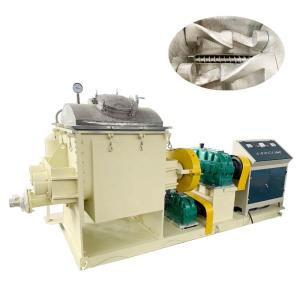

| Product name: | sigma mixer |
| Capacity: | 5~2000L |
| Machine Type: | sigma blade mixer |
| Application scope: | silicone sealant, hotmelt adhesive, butyl rubber |
| Type: | ordinary type, vacuum type |
| Keyword: | sigma mixer extruder |
| Agitator: | Z blade |
| Discharge: | Screw Extruding |
| Heating method: | electric heating, steam heating, oil circulation heating |
| After-sales Service Provided: | Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | None |
| Certification: | CE ISO |
| Packaging Details: | Suitable Delivery And Protect The Machine |
| Port: | QINGDAO |
| Supply Ability: | 100 Set/Sets per Quarter |
| Price: | $5,850.00/sets 1-4 sets |
| Company Info. |
| LAIZHOU TAIHE CHEMICAL MACHINE CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Model | Main Motor Power | Blade Rotate Speed (optional inverter regulation speed) | Heating Power （optional） | Discharge Method （optional） | Vacuum Pump Power (optional vacuum) | |||||
5L | 0.75KW | 33/23 rpm | 1KW | manual tilt | 2.2KW | |||||
10L | 1.1KW | 33/23 rpm | 2KW | manual tilt | 2.2KW | |||||
100L | 4KW | 35/22 rpm | 12KW | hydraulic tilt screw extruding bottom valve | 2.2KW | |||||
200L | 7.5KW | 35/22 rpm | 18KW | hydraulic tilt screw extruding bottom valve | 2.2KW | |||||
300L | 15KW | 37/21 rpm | 24KW | hydraulic tilt screw extruding bottom valve | 2.2KW | |||||
500L | 22KW | 35/25 rpm | 36KW | hydraulic tilt screw extruding bottom valve | 2.2KW | |||||
1000L | 37KW | 30/16 rpm | 36KW | hydraulic tilt screw extruding bottom valve | 4KW | |||||
1500L | 45KW | 30/16 rpm | 45KW | hydraulic tilt screw extruding bottom valve | 5.5KW | |||||
2000L | 55KW | 30/16 rpm | 45KW | hydraulic tilt screw extruding bottom valve | 5.5KW | |||||
Material: SS304, SS316L, Carbon Steel Type: single layer or with jacket Open the cover: by manual or hydraulic opening Discharge: hydraulic tilt, screw extruding, bottom valve Vacuum can be selected | ||||||||||
The above data is just for your reference, we support
customization. | ||||||||||
|
