GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode

Categories	Fiber Optic Cable
Model Number:	GJYXC8H
Place of Origin:	China
Brand Name:	ODM/OEM
Certification:	RoHS
Packaging Details:	2-4 km/wooden drum
Supply Ability:	100 Kilometer/Kilometers per Week
MOQ:	2000 meters
Price:	$0.10 - $0.30/meters
Payment Terms:	T/T, Western Union
Type:	Outdoor Fiber Optic Cable
Number of Conductors:	≥ 10
Fiber Type:	G.657A1
Fiber count:	12 Core
Outer sheath:	LSZH
Strength member:	FRP
Messenger wire:	7 stranded wires
Color:	Black or Customized

Contact Now

Add to Cart

Company Info.

A Fiber Solution Technology Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

GJYXC8H Outdoor Fiber Optic Cable 8 FRP Strength G.652D LSZH 12 Core Single Mode

GJYXC8H Outdoor Figure 8 FRP Strength G.652D LSZH 12 Core Single Mode Fiber Optic Cable

Product Description

In the GYXTC8S cable, single-mode/multimode the fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire
locates in the center of core as a metallic strength member.The tubes (and fillers) are stranded around
the strength member into a compact and circular cable core. After an Aluminum Polyethylene
Laminate (APL) moisture barrier is applied around the cable core, this part of cable
accompanied with the stranded wires as the supporting part are completed with a
polyethylene (PE) sheath to be figure 8 structure.

Specification

No. of cable					12
Fiber Model					G.652D
Loose Tube	Material(color)			LSZH(white)
		Diameter(±0.06)mm			2.6
		Thickness(±0.03)mm			0.45
		The Max.Core NO./Tube			12
Outer Sheath①	Material			LSZH
		Thickness(±0.1)mm			0.6
		Diameter(±0.2)mm			2.4
Web	Material			LSZH
Web		Size(±0.1)mm			1.0*1.0
Messenger Wire	Material			FRP
Messenger Wire		Size(±0.1)mm			1.2(0.4mm*7)
Outer Sheath②	Material			LSZH
		Thickness(±0.1)mm			1.0
		Diameter(±0.2)mm			5.0
Cable Diameter(±0.2)mm(W×H)					5.0*8.0
Cable Weight(±5)kg/km					37
Attenuation			1310 nm	£0.40
Attenuation				1550 nm	£0.30
Min. bending radius			Without Tension	10×Cable-φ
Min. bending radius				Under Maximum Tension	15×Cable-φ
Temperature range (℃)			Installation	-10~+60
				Transport&Storage	-20~+70
				Operation	-20~+70

Other Products

Packing & Delivery

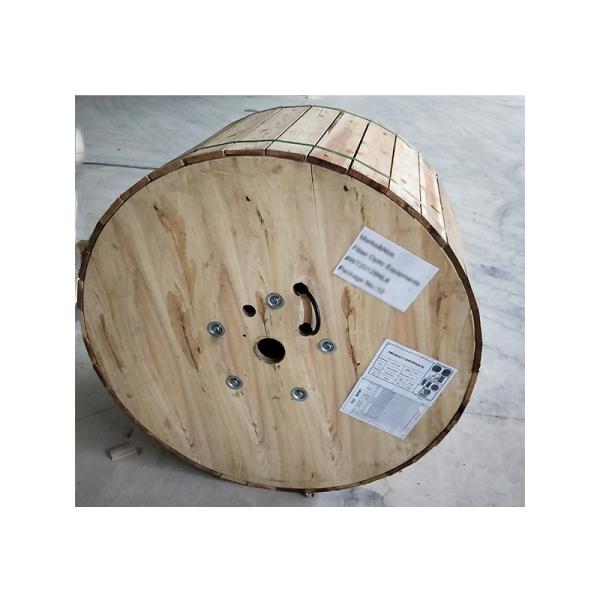

1-5 km/wooden drum
