| Categories | Sinotruk Spare Parts |
|---|---|
| Brand Name: | SHMC |
| Model Number: | CG series |
| Certification: | CE ISO EPA |
| Place of Origin: | China |
| MOQ: | 2 |
| power: | Gas Power |
| Fixed mode: | Side hanging type |
| working type: | cutting Blade |
| apply: | grass & bush |

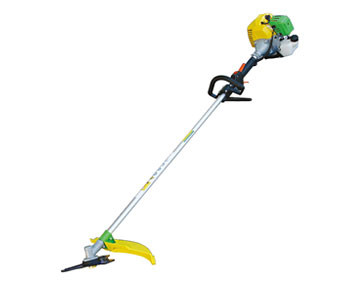

Our company has a complete brush cutter product line. There are
about 100 different models including the discharging capacity 20cc
to 70cc (horsepower 0.6-3.2). It can fit both of the family field
and professional field.
We have developed the third-generation low emission brush cutters
to meet the requirement of the European and American. The products
are low emission and high quality,
Can be used for grassland forage harvest, cutting grass of the
garden lawn, road and ground of the airport. Also can be used for
fish grass, corn, alfalfa, soybean, rice and wheat harvest.
| Product model | CG260A-CE |
|---|---|
| Main technical parameters | |
| Mating power | 1E34F |
| Discharging Capacity(ml) | 25.4 |
| Engine package dimension(l) | 0.7 |
| Maximum output power(kW/r/min) | 0.75/7500 |
| Idling speed(r/min) | 2500±150 |
| Clutch speed(r/min) | 3800±380 |
| Reduction ratio | 17:22 |
| Blade length(mm) | 255 |
| Cutting width(mm) | 415 |
| Net weight (kg) | 5.8 |
| Product model | CG260B-CE |
|---|---|
| Main technical parameters | |
| Mating power | 1E34F |
| Discharging Capacity(ml) | 25.4 |
| Engine package dimension(l) | 0.7 |
| Maximum output power(kW/r/min) | 0.75/7500 |
| Idling speed(r/min) | 2500±150 |
| Clutch speed(r/min) | 3800±380 |
| Reduction ratio | 17:22 |
| Blade length(mm) | 255 |
| Cutting width(mm) | 415 |
| Net weight (kg) | 5.9 |
| Product model | CG330A-CE |
|---|---|
| Main technical parameters | |
| Mating power | 1E36F-2A |
| Discharging Capacity(ml) | 32.6 |
| Engine package dimension(l) | 0.75 |
| Maximum output power(kW/r/min) | 0.9/6500 |
| Idling speed(r/min) | 2500±150 |
| Clutch speed(r/min) | 3800±380 |
| Reduction ratio | 17:22 |
| Blade length(mm) | 255 |
| Cutting width(mm) | 415 |
| Net weight (kg) | 6.5 |
| Product model | CG430A |
|---|---|
| Main technical parameters | |
| Mating power | 1E40F-5A |
| Discharging Capacity(ml) | 42.7 |
| Engine package dimension(l) | 1 |
| Maximum output power(kW/r/min) | 1.25/6500 |
| Idling speed(r/min) | 2500±150 |
| Clutch speed(r/min) | 3800±380 |
| Reduction ratio | 17:22 |
| Blade length(mm) | 255 |
| Cutting width(mm) | 415 |
| Net weight (kg) | 7.5 |
| Product model | CG490H |
|---|---|
| Main technical parameters | |
| Mating power | 1E43F-D |
| Discharging Capacity(ml) | 49.3 |
| Engine package dimension(l) | 1.1 |
| Maximum output power(kW/r/min) | 1.3/7000 |
| Idling speed(r/min) | 2500±150 |
| Clutch speed(r/min) | 3800±380 |
| Reduction ratio | 16:19 |
| Blade length(mm) | 255 |
| Cutting width(mm) | 415 |
| Net weight(kg) | 8 |
|
