| Categories | Silk Screen Printing Machine |
|---|---|
| Brand Name: | OUNUO |
| Model Number: | FB-NWF12010II |
| Certification: | CE,ISO9001:2000 |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 30set/month |
| Delivery Time: | 30 days |
| Packaging Details: | wooden case |
| Max.Printing Size: | 1200×1100mm |
| Printing Speed: | 500-1500m/h |
| Thickness range: | 45g/m²~100g/m² |
| Max.feeding width: | 1250mm |
| Company Info. |
| WENZHOU WEXIN MACHINERY CO.,LTD |
| View Contact Details |
| Product List |

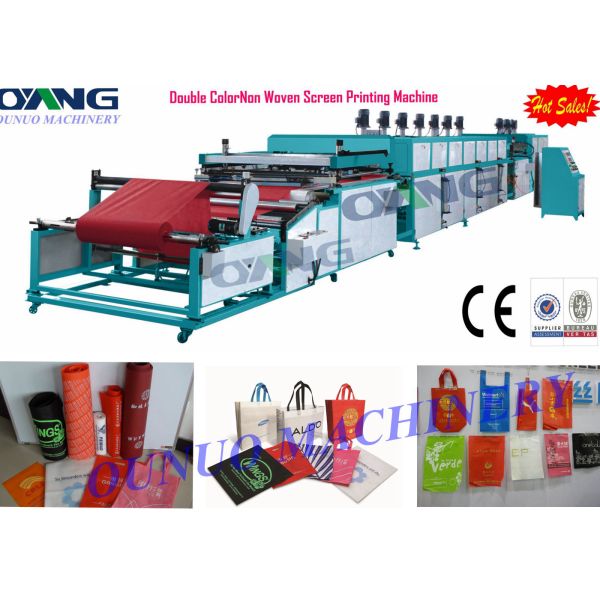

Performance and Features:
1. Automatic feeding printing,drying and collecting.Save labors and overcome restraints caused by weather conditions.
2. With Balanced pressure,with high ink thickness.Suitable for printing on high-quality non-woven products.
3. Applied to various sizes of printing screen frames.
4. Big-size printing area to print multiply layouts.Improve work efficiency.
5. Before and after full page printing,effective space between images can be reduced to
minimum 1 cm.Effectively reduce the material waste.
6. High precision of printing controlled by servo motor.
7. Connected with non-woven bag making machine to produce the bag automatically.Greatly improve work efficiency.
Main technical parameters:
| Model | FB-NWF12010II |
| Max.Printing Size | 1200×1100mm |
| Nonwoven Fabric Rolls Width | 1250mm |
| Nonwoven Fabric Thickness | 45g/m²~100g/m² |
| Max.Diameter of Rolls | 800mm |
| Printing Speed | 500-1500m/h |
| Voltage&Total Power | 380V 3P4N 24Kw |
| Machine Size | 10500×1800×1720mm |
| Basic Structure | Feeding Part+Printing Part+Drying Part+Collegting Part |
| Weight | 2000kg |
|
