| Categories | Stud Welding Pins |
|---|---|
| Brand Name: | Huihao |
| Model Number: | Cup Head (CD) Weld Pins |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union,PAYPAL |
| Supply Ability: | 500000 pcs per 15 days |
| Delivery Time: | 5-8 work days |
| Packaging Details: | 1.500pcs per bag, 10 bags per carton.72 cartons per pallet 2.1000pcs per carton, 48 cartons per pallet. 3. to be your requirements |
| Material: | carbon steel |
| Finished: | copper coating or galvanized steel |
| Pin Diameter: | 2.7mm etc. |
| Head Diameter: | 30mm or 38mm |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

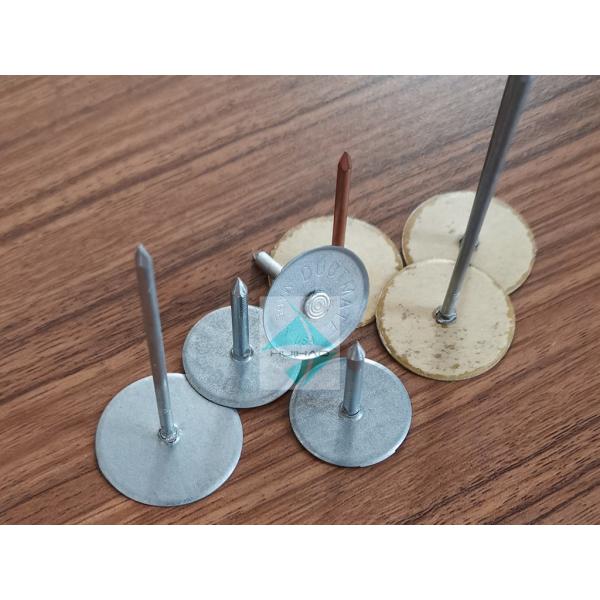

Galvanized Steel Cupped Head 38mm , Mini Cupped Head CD Weld Pins 12Gauge Dia
>>> Introduction To The Cup Head (CD) Weld Pins
This type of cup head Capacitor Discharge (CD) weld pins are welded through the insulation, allowing the fabrication to be done
in one easy step. The head of the pin is attached to the nail, so there is no need to add a washer. It reduces the labor time by
making a neat, finished appearance.
>>>Specification Of The Cup Head (CD) Weld Pins
Galvanized Steel Cupped Head 38mm , Mini Cupped Head CD Weld Pins 12Gauge Dia
Cup Head (CD) Weld Pins
| Material | Length | Pin Diameter | Head Diameter |
| Galvanized Steel | 3/8" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 1/2" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 3/4" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 7/8" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 1" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 1-1/8" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 1-1/4" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 1-1/2" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 1-5/8" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 1-7/8" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 2" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 2-1/8" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 2-1/4" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 2-1/2" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 3" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 3-1/2" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 4" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 4-1/2" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 5" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 5-1/2" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 6" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| Galvanized Steel | 8" | 12Ga (2.7mm) | 1-1/2" (38mm) |
| MATERIAL | PIN | WASHER | ||
| LOW CARBON STEEL | LOW CARBON STEEL | |||
| C - 0.23% max | P - 0.04% max. | C - 0.23% max | P - 0.04% max. | |
| Mn - 0.90% max. | S - 0.05% max | Mn - 0.90% max. | S - 0.05% max | |
| MECHANICAL PROPERTIES | Values available upon request | Values available upon request | ||
| PLATING | Standard Pin is Galvanized | Standard Washer is Galvanized | ||
| Copper Plated is available | ||||
| BEVEL | Washer edge is beveled to prevent cutting of insulation material | |||
| STAINLESS STEEL | Not standard, but available by special order | |||
| PAPER INSULATING WASHERS | Available, upon request, for welding through foil faced insulation | |||
Application
1: Position insulation
2: Press cup head pin through insulation
3: Weld in place to complete installation
>>> Package
1.500pcs per bag, 10 bags per carton.72 cartons per pallet
2.1000pcs per carton, 48 cartons per pallet.
3. to be your requirements
|
