| Categories | Dry Mortar Equipment |
|---|---|
| Brand Name: | MG |
| Model Number: | MGDM-1.0 |
| Certification: | CE, BV, ISO9001:2008 |
| Place of Origin: | Henan, China (Mainland) |
| MOQ: | 1 set |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 100 Sets per month |
| Delivery Time: | 5-7 working days |
| Packaging Details: | Wooden box packaging, Plastic foam packaging |
| Condition: | New |
| Application: | Dry mortar production, Dry mortar production |
| Power(KW): | 7.5kw or depends |
| Warranty period: | 12 months |
| Color: | blue, gray, red, yellow or customized |
| Automatic Grade: | Automatic |
| Additional capabilities: | Mixing |
| Weight: | 10-15t |
| Manpower: | 3-5 people |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Price: | negotiable |
| Company Info. |
| Zhengzhou MG Industrial Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Professional Ceramic Tile Adhesive Mortar Manufacturing Dry Mortar Mixer Machine

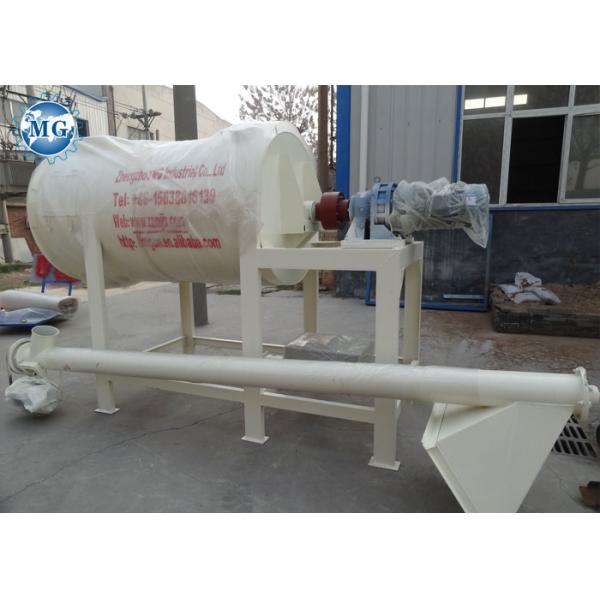

Description of simple Dry Mortar Mixer Machine

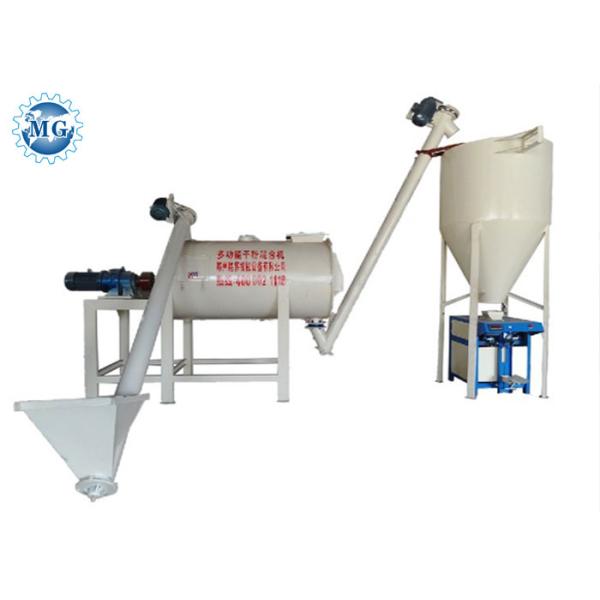

MG series simple dry mortar production line is designed based on the traditional mixer, is added a material conveying system, a storage silo and an automatic packaging machine. The well-mixed materiald will go into the storage silo via material conveying pipe, and the mixer maybe feed consecutively and work continuously and work continuously in flow line production, but the equipment is not over 4 maters high, thus solving the problem of heightening the workshop.
Moreover, it may realize automatic metering and packaging, hence,
it may not merely save the time and energies but also may be more
accurate. It required little investment, but it may load, wight and
package the materials automatically; no wondering, it is a simple
but practical production line.
Technical parameter of Dry Mortar Mixer Machine
| Model | Output | Equipment height | Occupied area | Manpower | Batching and Packaging |
| Simple type | 3-4t/h | 3-4m | 20m2 | 2-3 person | Manual Batching Automatic packaging |
| Improved type | 4-5/h | 3-4m | 20m2 | 2-3 person | Manual Batching Automatic packaging |
| Semi-Automatic type | 5-8t/h | 6-8m | 50-60m2 | 3-4 person | Manual Batching Automatic packaging |
| Full-Automatic type | 8-30t/h | 8-13m | 60-100m2 | 3-4 person | Automatic Batching Automatic packaging |
Application:
1, Putty powder
2, Masonry mortar,
3, Thin and Smooth wall mortar,
4, Water proof mortar,
5, Plaster powder,
6, Wall plastering mortar,
7, Ceramic tile adhensive mortar,
Raw materials are: Cement, Sand, Flyash, Gelatine powder, Cellulose
and Additives.etc
Other detail information:
The workshop occupy 100-200m 2 , and the equipment occupy 20 m 2 , the height of the equipment is 3.2m, it need 2-3 people to operate the machine, 1000kg for one batch.
|
