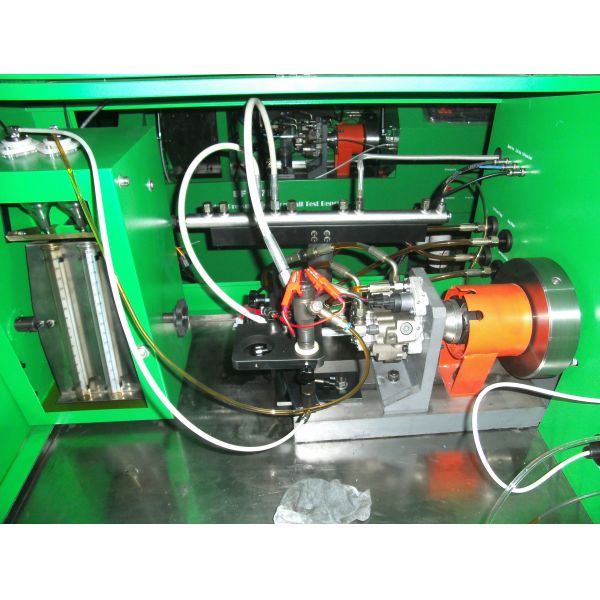

BF1178 1600 data coding BOSCH/DENSO ommon rail diesel injector pump test bench
Common rail test bench BF1178 is one updated equipment which used to test common rail pumps, common rail injectors and common rail pipe like BOSCH/DELPHI/DENSO/SIEMENS etc brands. This equipment adopts humanizing control interfaces, can control the parameters of the oil pressure, pulse width, frequency and the scale valve duty cycle.
>>> Test BOSCH, DENSO, DELPHI, SIMENS etc brands Injectors
>>> Measuring the oil injection quantity and oil return quantity of common rail injector under each working state
>>> Can set common rail injector’s injection status, and measuring the oil quantity.
>>> Proceed high pressure washing towards the common rail injector
>>> Custom setting the characteristics of rail pressure, pulse width and oil measuring time
Optional Functions:
This type can add the PIEZO injectors testing functions as customers' need.
| BF1178 Common Rail Test Bench Technical Items | Parameters |
| Voltage | 380V/22V |
| Rated output power | 7.5kw/11kw |
| Speed | 0--3600r/min |
| Spindle steering | forward/backward |
| Continous injection time | o--1000 time |
| Rail pressure | o--1800 bar |
| Pulse width | 100--3000μs |
| Fuel oil temperature | 40 +/- 2℃ |
| Test oil filtration rating | less than 5μ |
| Size | 1800*850*1550mm |
| Weight | 800kg |
BF1178 common rail injector and pump test bench
https://www.youtube.com/watch?v=0ZlHcqYqtMk
BF1176 common rail injector test bench
https://www.youtube.com/watch?v=88KhnEcvTDs&feature=youtu.be
CRI common rail injector repair instruction
https://www.youtube.com/watch?v=lzLWMoYlMQk
>>> Vehicles: Automobiles, tractors, agriculture machines, dynamos, engineering machinery
>>> Sea Transportation
>>> Scientific research of teaching
>>> National defense
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. Spare parts replacement and repair service provided.
>>> Packaging : wooden case with water-proof membrane
>>> Delivery: within 15 days after receiving the deposit
|
